Cad doodle (1/2-20 bolt)

I’m still waiting for some parts to arrive for my next project, so I’ve been spending my “goof off” time playing in cad. My latest project is this 1/2-20 bolt designed to class 2A tolerances. If you want to take a look at it in 3D you can download the RhinoCad file here.

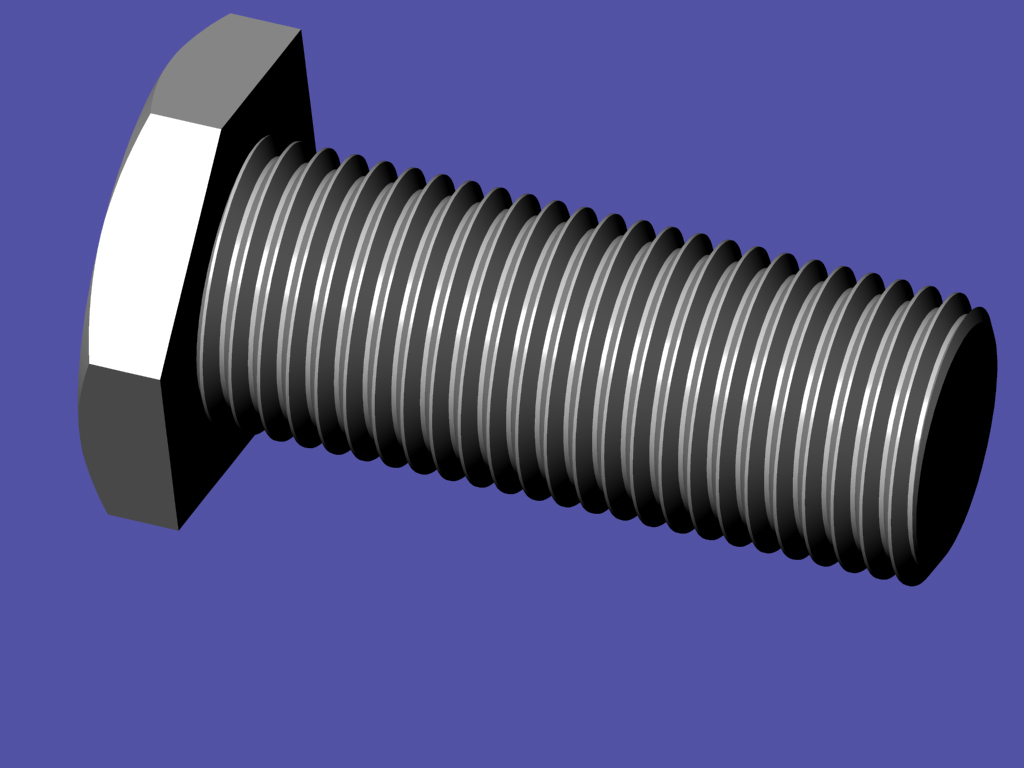

1/2-20 bolt view 1

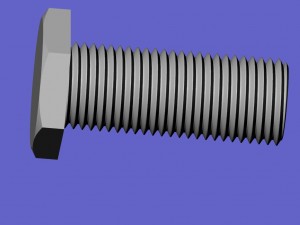

1/2-20 bolt view 2

1/2-20 bolt view 3
